THERE IS ALWAYS A HINGE THAT SUITS YOU
-

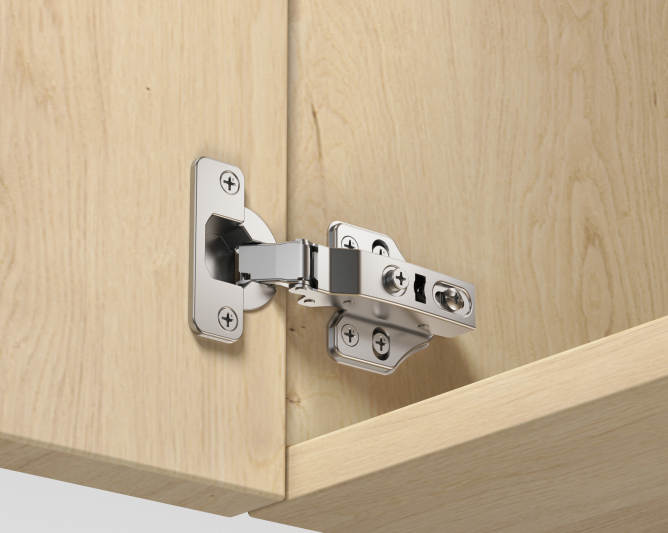

K22 Inseparable Thick Door Panel Soft-closing Hinge
Description
- Inseparable Installation
- One-way function
- Opening Angle: 95°
- Diameter of hinge cup: p40mm
- Depth of hinge cup: 12.5mm
- Door(K)dimension:3-7mm
- Optional door thickness: 20-25mm
Material
- Steel/ Nickel plating2026-05-16 -

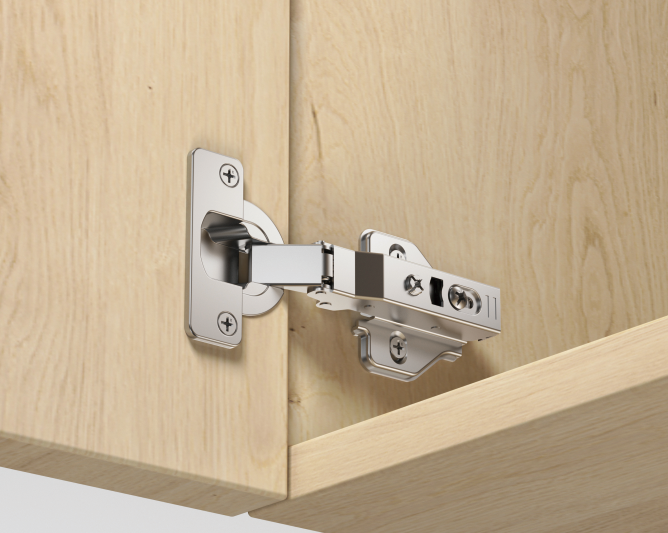

K23 Clip-on Thick Door Panel Soft-closing Hinge
Description
- Clip-on Installation
- One-way function
- Opening Angle: 95°
- Diameter of hinge cup: p40mm
- Depth of hinge cup: 12.5mm
- Door(K)dimension: 3-7mm
- Optional door thickness: 20-25mm
Material
- Steel / Alloy / Nickel plating2026-05-16 -
D02P Inseparable Thick and Thin Door Panel Soft-closing Hinge
Description
- Inseparable Installation
- Opening Angle: 105°
- Diameter of hinge cup: p35mm
- Depth of hinge cup: 12.5mm
- Door(K)dimension: 3-9mm
- Optional door thickness: 16-28mm
- EN15570 Standard
Material
- Steel / Nickel plating2026-05-16 -
DX02 Inseparable Thick and Thin Door Panel Soft-closing Rebounding Hinge
Description
- Inseparable Installation
- Opening Angle: 105°
- Diameter of hinge cup: p35mm
- Depth of hinge cup: 12.5mm
- Door(K)dimension:3-9mm
- Optional door thickness: 16-28mm
- EN15570 Standard
Material
- Steel / Nickel plating2026-05-16 -
D15P Clip-on Thick and Thin Door Panel Soft-closing Hinge
Description
- Clip-on Installation
- Opening Angle: 105°
- Diameter of hinge cup: p35mm
- Depth of hinge cup: 12.5mm
- Door(K)dimension: 3-9mm
- Optional door thickness: 16-28mm
- EN15570 Standard
Material
- Steel / Nickel plating2026-05-16 -
DX15 Clip-on Thick and Thin Door Panel Soft-closing Rebounding Hinge
Description
- Clip-on Installation
- Opening Angle: 105°
- Diameter of hinge cup: p35mm
- Depth of hinge cup: 12.5mm
- Door(K)dimension: 3-9mm
- Optional door thickness: 16-28mm
- EN15570 Standard
Material
- Steel / Nickel plating2026-05-16
Thick Door Panel Hinge Series
-
