Zhaoqing JinLi Xiangxing Precision Metal Manufacturing Co.,Ltd-Normal Hinge Series

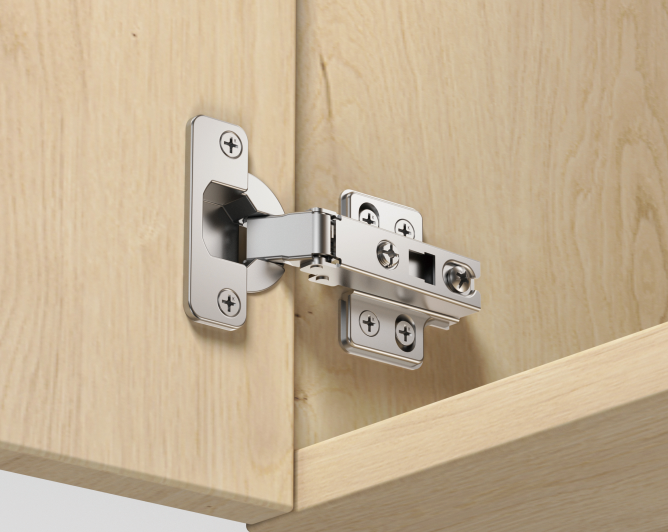

B02 Slide-on Hinge

Description
- Side-on Two-way Spring Hinge
- Opening Angle : 110°
- Diameter of hinge cup: p35mm
- Depth of hinge cup: 11.5mm
- Door(k) dimension: 3-7mm
- Optional door thickness: 15-22mm
- EN15570 Standard

Material
- Steel / Nickel plating

2026-05-18

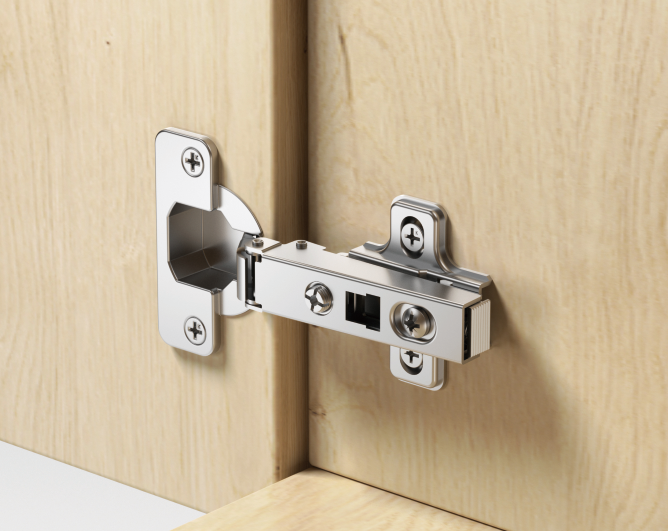

B04 Slide-on Rebounding Hinge(Touch-to-open)

Description
- Rebounding Spring Hinge
- To be used with push latches
- Opening Angle : 110°
- Diameter of hinge cup: 35mm
- Depth of hinge cup: 11.5mm
- Door(k) dimension: 3-7mm
- Optional door thickness: 15-22mm

Material
- Steel / Nickel plating

2026-05-18

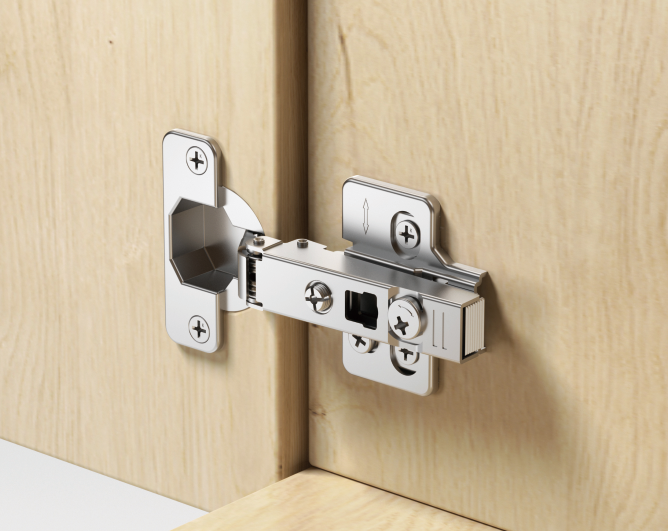

B20 Clip-on Hinge With 3D Adjustment

Description
- Clip-on Two-way Spring Hinge
- 3D Adjustment
- Opening Angle : 110°
- Diameter of hinge cup: p35mm
- Depth of hinge cup: 11.5mm
- Door(k) dimension: 3-7mm
- Optional door thickness: 15-22mm
- EN15570 Standard

Material
- Steel / Alloy / Nickel plating

2026-05-18
B23 Clip-on Hinge

Description
- Clip-on Two-way Spring Hinge
- Opening Angle : 110°
- Diameter of hinge cup: p35mm
- Depth of hinge cup: 11.5mm
- Door(k) dimension:3-7mm
- Optional door thickness: 15-22mm
- EN15570 Standard

Material
- Steel / Alloy / Nickel plating

2026-05-18
B24 Key-hole Hinge

Description
- Key-hole Two-way
- Opening Angle : 110°
- Diameter of hinge cup: p35mm
- Depth of hinge cup: 11.5mm
- Door(k) dimension: 3-7mm
- Optional door thickness: 15-22mm
- EN15570 Standard

Material
- Steel / Nickel plating

2026-05-18
